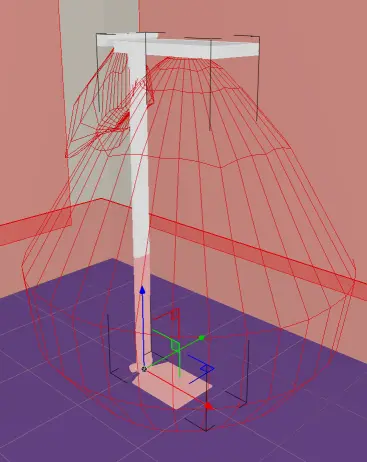

Example Trilux Belviso S CDP
Introduction
Trilux Belviso is an example of a standing luminaire with two individual heads. The secondary light emitter can be adjusted by rotating it. Each light emitter has a different ldt file connected via the geometry node.
product.xml
<?xml version="1.0" encoding="UTF-8"?>
<Root xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:noNamespaceSchemaLocation="https://gldf.io/xsd/gldf/1.0.0-rc.3/gldf.xsd">
<Header>
<Manufacturer>TRILUX</Manufacturer>
<FormatVersion major="1" minor="0" pre-release="3" />
<CreatedWithApplication>Visual Studio Code</CreatedWithApplication>
<GldfCreationTimeCode>2023-03-29T14:30:00Z</GldfCreationTimeCode>
<UniqueGldfId>7dedd642-e5ba-4cdf-81f7-a21d7c4463fc</UniqueGldfId>
</Header>
<GeneralDefinitions>
<Files>
<File id="ldtmain" contentType="ldc/eulumdat" type="localFileName">TX054020.ldt</File>
<File id="ldtindirect" contentType="ldc/eulumdat" type="localFileName">TX054019.ldt</File>
<File id="geometryFile" contentType="geo/l3d" type="localFileName">Belviso_S_CDP_LED9400nw_ETD_03_TOC_6437657_10123990_de.l3d</File>
<File id="productImage" contentType="image/jpg" type="localFileName">Belviso_S_CDP_LED_03_AP_WEB.jpg</File>
</Files>
<Photometries>
<Photometry id="PhotometryMain">
<PhotometryFileReference fileId="ldtmain"></PhotometryFileReference>
<DescriptivePhotometry>
<CIE-FluxCode>64 89 97 100 100</CIE-FluxCode>
</DescriptivePhotometry>
</Photometry>
<Photometry id="PhotometryIndirect">
<PhotometryFileReference fileId="ldtindirect"></PhotometryFileReference>
<DescriptivePhotometry>
<CIE-FluxCode>0 0 0 0 100</CIE-FluxCode>
</DescriptivePhotometry>
</Photometry>
</Photometries>
<LightSources>
<FixedLightSource id="LightSource">
<Name>
<Locale language="en">LED</Locale>
</Name>
<RatedInputPower>18</RatedInputPower>
<ColorInformation>
<ColorRenderingIndex>80</ColorRenderingIndex>
<CorrelatedColorTemperature>4000</CorrelatedColorTemperature>
<InitialColorTolerance>3 SDCM</InitialColorTolerance>
</ColorInformation>
</FixedLightSource>
</LightSources>
<ControlGears>
<ControlGear id="ControlGear1">
<Name>
<Locale language="en">Control Gear 1</Locale>
</Name>
<Description>
<Locale language="en">Separately dimmable 1..10V</Locale>
</Description>
</ControlGear>
</ControlGears>
<Emitters>
<Emitter id="LightEmitterMain">
<FixedLightEmitter emergencyBehaviour="Combined">
<PhotometryReference photometryId="PhotometryMain" />
<LightSourceReference fixedLightSourceId="LightSource" />
<RatedLuminousFlux>7800</RatedLuminousFlux>
</FixedLightEmitter>
</Emitter>
<Emitter id="LightEmitterIndirect">
<FixedLightEmitter emergencyBehaviour="None">
<PhotometryReference photometryId="PhotometryIndirect" />
<LightSourceReference fixedLightSourceId="LightSource" />
<RatedLuminousFlux>1600</RatedLuminousFlux>
</FixedLightEmitter>
</Emitter>
</Emitters>
<Geometries>
<ModelGeometry id="Geometry1">
<GeometryFileReference fileId="geometryFile" levelOfDetail="Medium" />
</ModelGeometry>
</Geometries>
</GeneralDefinitions>
<ProductDefinitions>
<ProductMetaData>
<UniqueProductId>d2a7648d-4020-43e5-a479-85fa968e6054</UniqueProductId>
<ProductNumber>
<Locale language="en">TOC: 6437657</Locale>
</ProductNumber>
<Name>
<Locale language="en">Belviso S CDP LED9400nw ETD 03</Locale>
</Name>
<Description>
<Locale language="en">Free-standing LED luminaire with separately tiltable indirect spot</Locale>
</Description>
<Pictures>
<Image fileId="productImage" imageType="Product Picture" />
</Pictures>
<DescriptiveAttributes>
<Mechanical>
<IKRating>IK02</IKRating>
</Mechanical>
<Electrical>
<ElectricalSafetyClass>I</ElectricalSafetyClass>
<IngressProtectionIPCode>IP20</IngressProtectionIPCode>
</Electrical>
<OperationsAndMaintenance>
<MedianUsefulLifeTimes>
<MedianUsefulLife>L80B50 70000h 25°C</MedianUsefulLife>
</MedianUsefulLifeTimes>
</OperationsAndMaintenance>
<CustomProperties>
<Property id="ID1PL17P9t53oexZksoRkx7Y">
<Name>
<Locale language="en">photobiology class</Locale>
</Name>
<PropertySource>CEN/TS17623</PropertySource>
<Value>0</Value>
</Property>
<Property id="ID1LrBLaYtnCARKperF_2Ykh">
<Name>
<Locale language="en">glow wire resistance</Locale>
</Name>
<PropertySource>CEN/TS17623</PropertySource>
<Value>650°C</Value>
</Property>
</CustomProperties>
</DescriptiveAttributes>
</ProductMetaData>
<Variants>
<Variant id="variant1">
<ProductNumber>
<Locale language="en">TOC: 6437657</Locale>
</ProductNumber>
<Name>
<Locale language="en">Belviso S CDP LED9400nw ETD 03</Locale>
</Name>
<Mountings>
<Ground>
<FreeStanding></FreeStanding>
</Ground>
</Mountings>
<Geometry>
<ModelGeometryReference geometryId="Geometry1">
<EmitterReference emitterId="LightEmitterMain">
<EmitterObjectExternalName>fixed_leo</EmitterObjectExternalName>
</EmitterReference>
<EmitterReference emitterId="LightEmitterIndirect">
<EmitterObjectExternalName>rotatable_leo</EmitterObjectExternalName>
</EmitterReference>
</ModelGeometryReference>
</Geometry>
<DescriptiveAttributes>
<Mechanical>
<Weight>14.5</Weight>
</Mechanical>
</DescriptiveAttributes>
</Variant>
</Variants>
</ProductDefinitions>
</Root>
