Philips SP542P
Introduction

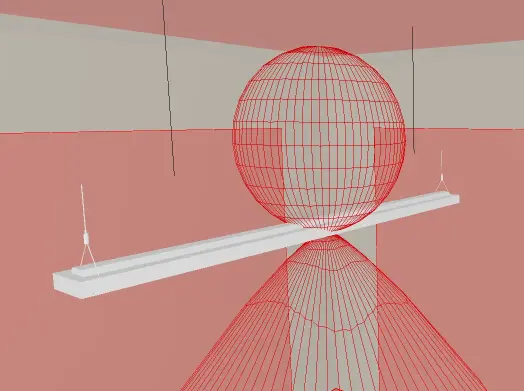

This example demonstrates a simple minimal GLDF implementation of the Philips SP542P product. It uses L3D geometry.
product.xml
<?xml version="1.0" encoding="UTF-8"?>
<Root xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:noNamespaceSchemaLocation="https://gldf.io/xsd/gldf/1.0.0-rc.3/gldf.xsd">
<Header>
<Manufacturer>Philips Lighting</Manufacturer>
<FormatVersion major="1" minor="0" pre-release="3" />
<CreatedWithApplication>Visual Studio Code</CreatedWithApplication>
<GldfCreationTimeCode>2023-03-29T14:30:00Z</GldfCreationTimeCode>
<UniqueGldfId>badec930-7355-44b6-8808-4682f1887b4c</UniqueGldfId>
</Header>
<GeneralDefinitions>
<Files>
<File id="ldtFile" contentType="ldc/eulumdat" type="localFileName">SP542P SRD L1480 U3 1 xLED66S_940 OC.ldt</File>
<File id="geometryFile" contentType="geo/l3d" type="localFileName">SP542P_SRD_L1480_U3_1_xLED66S_940_OC.l3d</File>
<File id="productImage" contentType="image/jpg" type="localFileName">910505100471_EU.de_DE.jpg</File>
</Files>
<Photometries>
<Photometry id="photometry01">
<PhotometryFileReference fileId="ldtFile"></PhotometryFileReference>
<DescriptivePhotometry>
<HalfPeakDivergence>
<C0-C180>100</C0-C180>
<C90-C270>100</C90-C270>
</HalfPeakDivergence>
</DescriptivePhotometry>
</Photometry>
</Photometries>
<LightSources>
<FixedLightSource id="lightSource01">
<Name>
<Locale language="de">LED</Locale>
</Name>
<RatedInputPower>47.5</RatedInputPower>
<ColorInformation>
<ColorRenderingIndex>90</ColorRenderingIndex>
<CorrelatedColorTemperature>940</CorrelatedColorTemperature>
</ColorInformation>
</FixedLightSource>
</LightSources>
<ControlGears>
<ControlGear id="controlGear01">
<Name>
<Locale language="de">Elektronisches Vorschaltgerät</Locale>
</Name>
<Description>
<Locale language="de">DALI-regelbar</Locale>
</Description>
</ControlGear>
</ControlGears>
<Emitters>
<Emitter id="emitter01">
<FixedLightEmitter>
<PhotometryReference photometryId="photometry01"/>
<LightSourceReference fixedLightSourceId="lightSource01"/>
<RatedLuminousFlux>6600</RatedLuminousFlux>
</FixedLightEmitter>
</Emitter>
</Emitters>
<Geometries>
<ModelGeometry id="geometry01">
<GeometryFileReference fileId="geometryFile" levelOfDetail="Medium"/>
</ModelGeometry>
</Geometries>
</GeneralDefinitions>
<ProductDefinitions>
<ProductMetaData>
<ProductNumber>
<Locale language="de">SP542P LED66S/940 PSD ACL SMT L1480 WH</Locale>
</ProductNumber>
<Name>
<Locale language="de">TrueLevel, Pendelleuchte SP542P LED66S/940 PSD ACL SMT L1480 WH</Locale>
</Name>
<Description>
<Locale language="de">TrueLevel basiert auf Philips TrueLine</Locale>
</Description>
<ProductSeries>
<ProductSerie>
<Name>
<Locale language="de">Philips TrueLevel</Locale>
</Name>
</ProductSerie>
<ProductSerie>
<Name>
<Locale language="de">Philips TrueLine</Locale>
</Name>
</ProductSerie>
</ProductSeries>
<Pictures>
<Image imageType="Product Picture" fileId="productImage" />
</Pictures>
<DescriptiveAttributes>
<Mechanical>
<IKRating>IK01</IKRating>
</Mechanical>
<Electrical>
<IngressProtectionIPCode>IP40</IngressProtectionIPCode>
<PowerFactor>0.9</PowerFactor>
<ConstantLightOutput>false</ConstantLightOutput>
</Electrical>
</DescriptiveAttributes>
</ProductMetaData>
<Variants>
<Variant id="variant1">
<ProductNumber>
<Locale language="de">SP542P LED66S/940 PSD ACL SMT L1480 WH</Locale>
</ProductNumber>
<Name>
<Locale language="de">Variante 1</Locale>
</Name>
<Description>
<Locale language="de">Keine Variantenbeschreibung vorhanden</Locale>
</Description>
<GTIN>11111111</GTIN>
<Mountings>
<Ceiling>
<Pendant pendantLength="500"/>
</Ceiling>
</Mountings>
<Geometry>
<ModelGeometryReference geometryId="geometry01">
<EmitterReference emitterId="emitter01">
<EmitterObjectExternalName>LEO</EmitterObjectExternalName>
</EmitterReference>
</ModelGeometryReference>
</Geometry>
</Variant>
</Variants>
</ProductDefinitions>
</Root>
